Gen6 EDSFF x8 PAM Fixture
Part Number: QTL3069
Product Details
The Gen6 EDSFF x8 PAM Fixture supports the latest drives and has versions that support E1, E3, and E3-2T drives.
With the fixture, you can both capture analog measurements (voltage, current, and power) and access track digital sideband assertions. Captured data can be viewed in real time or stored for later processing and analysis.
This allows for a wide range of testing scenarios: measure SSD power consumption during sleep, inrush current during power-up, or capture the exact timing of PERST assertion from your host.

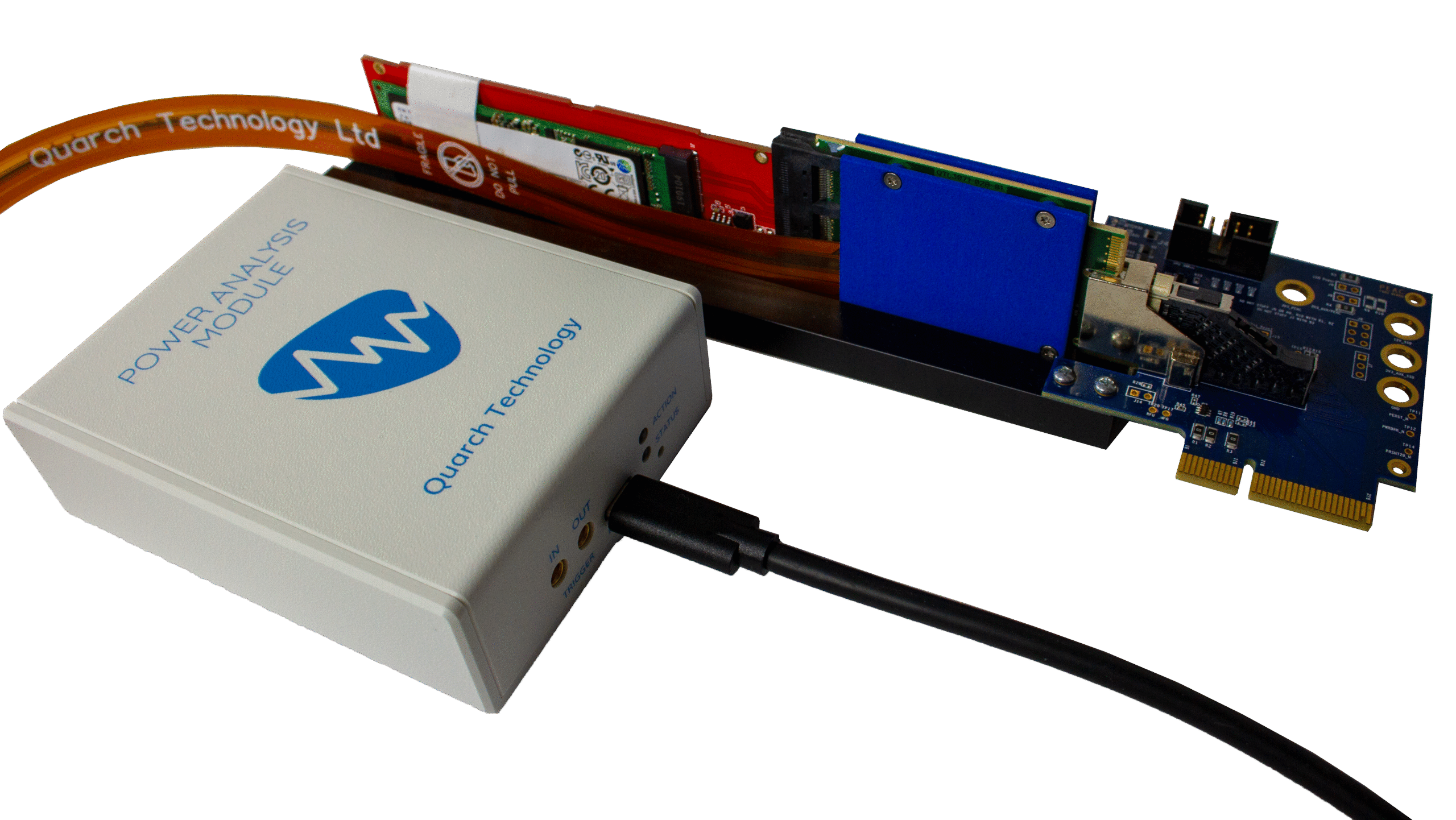

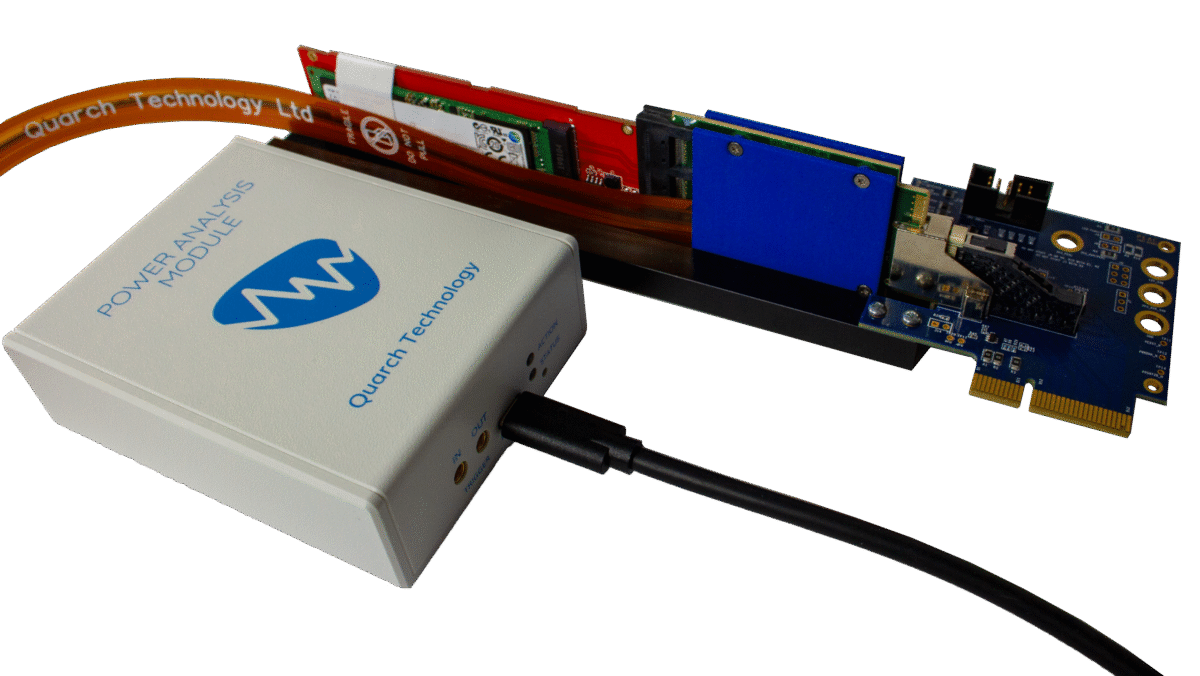

For the fixture to function, a PAM is required.
E1, E3, and E3-2T Drive Standards
Standards for Digital Sideband Assertion in Storage Testing
Features
- View and capture the power performance of a device
- Capture digital sideband transitions, now including REFCLK monitoring
- Power cycle the drive
Technical Specifications
- Supports E1, E3 & E3-2T devices (different versions)
- Speeds up to Gen6
- Lane width up to x8
- Measurement on 12v and 3v3 aux rails
- Digital capture on: PRSNT#, PERST1#, CLKREQ#, LED, SMBRST#, SMBDAT, SMBCLK, PWRDIS, PERST0#, DUALPORTEN#, RFU, MFG, REFCLK0_OK, REFCLK1_OK
Versions
QTL3069/KIT_E1

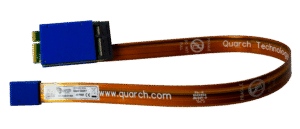

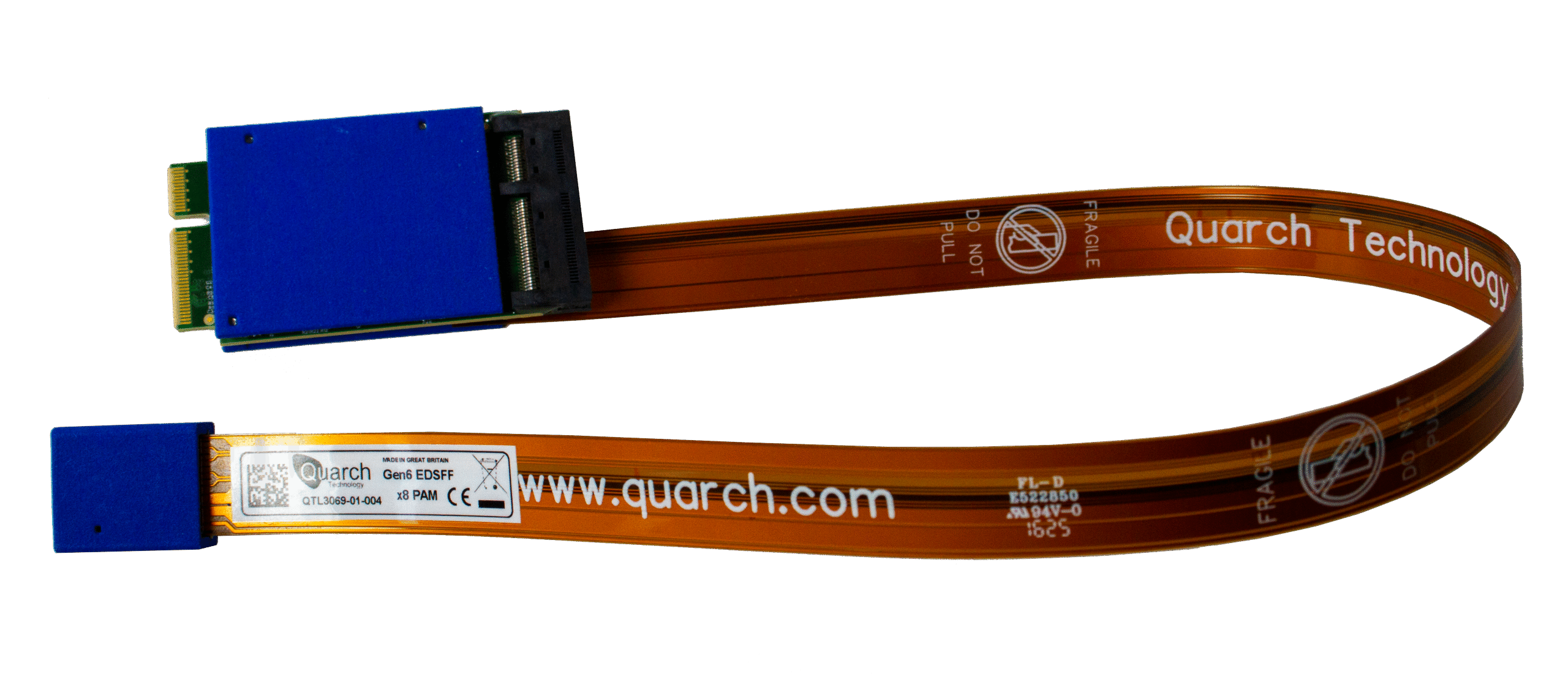

E1 Version
QTL3069/KIT_E3

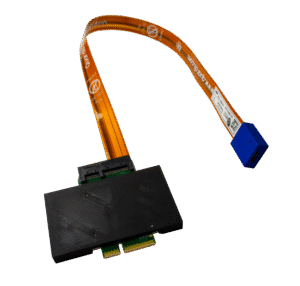

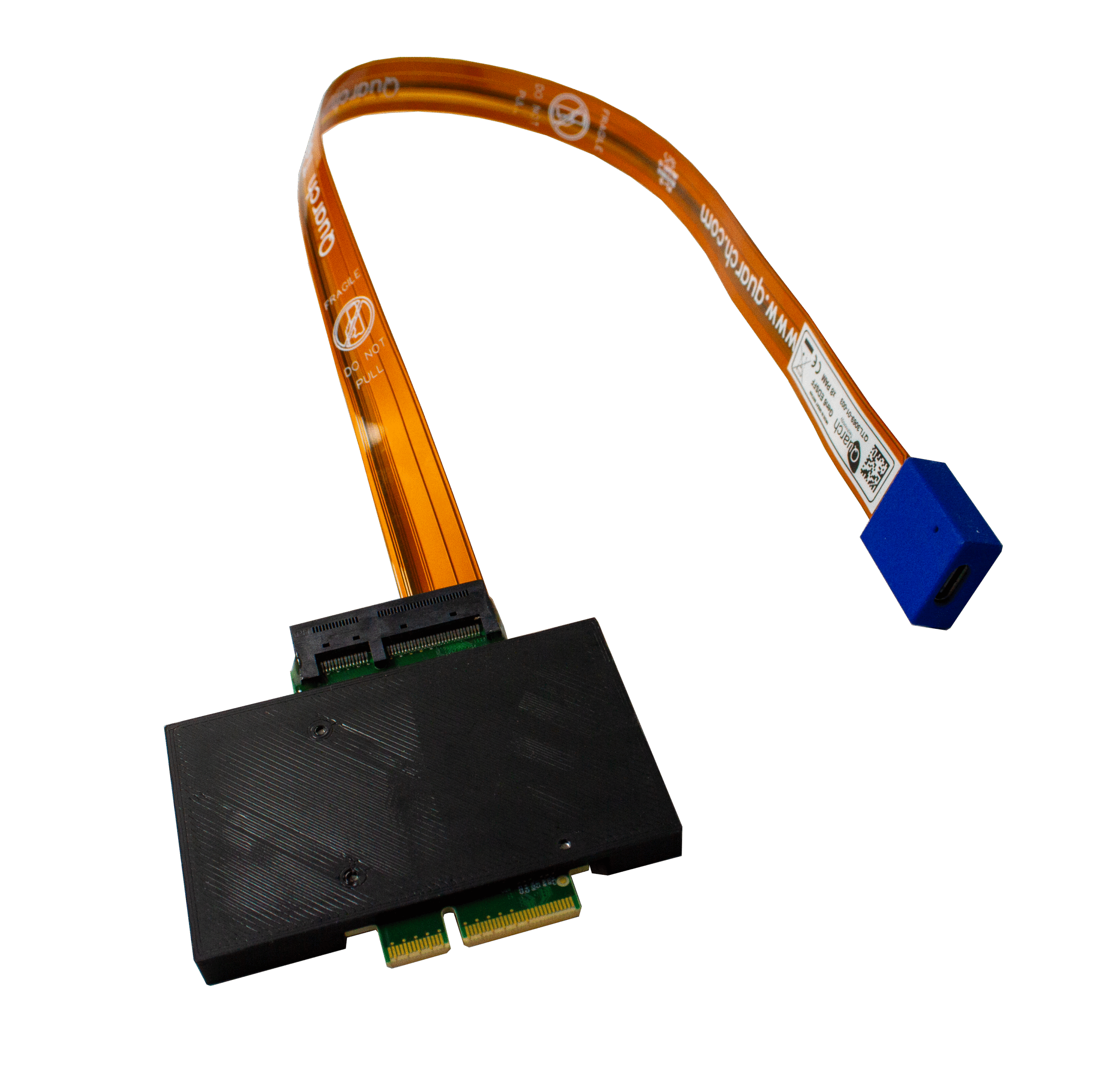

E3 Version
QTL3069/KIT_E3-2T
E1-2T Version
