Gen6 AIC x4-4 Breaker
Part Number: QTL3185
Product Details
The Gen6 AIC x4-4 Breaker (4 PCIe lanes, all switched). It gives you the full range of features for the maximum level of testing. To see how it compares against the full range, check out the blog here.

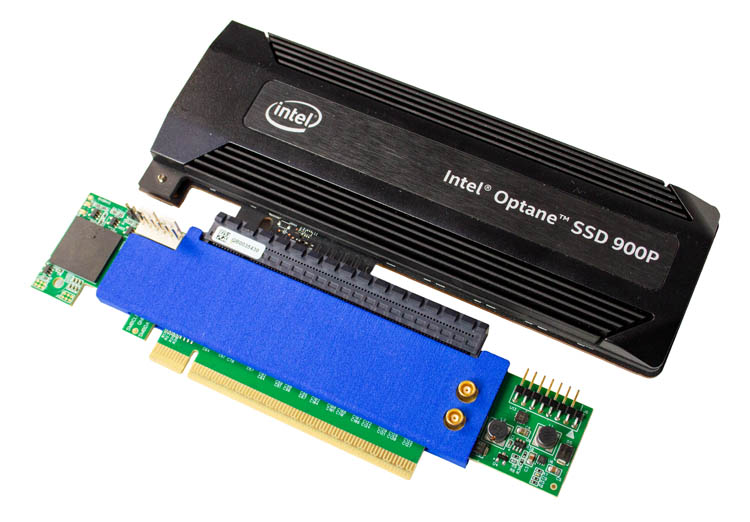

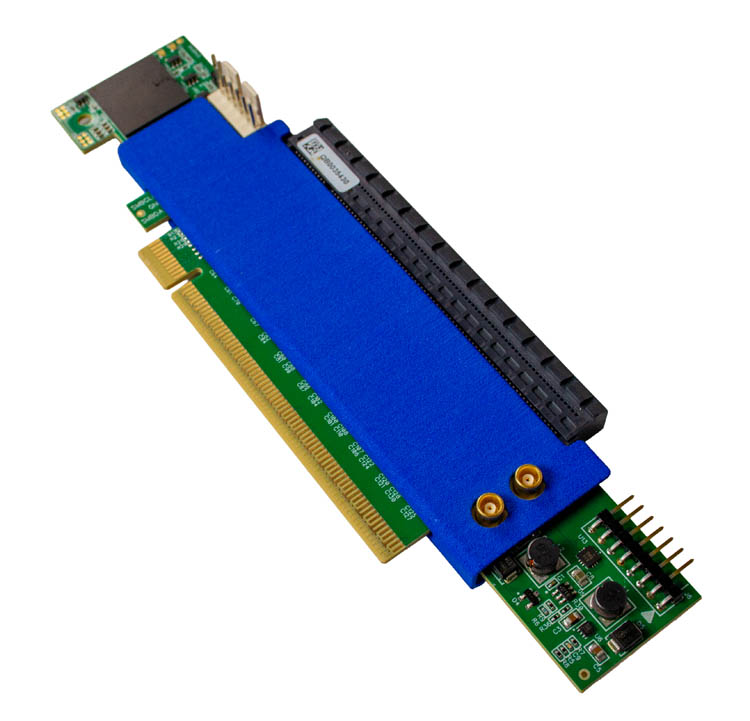

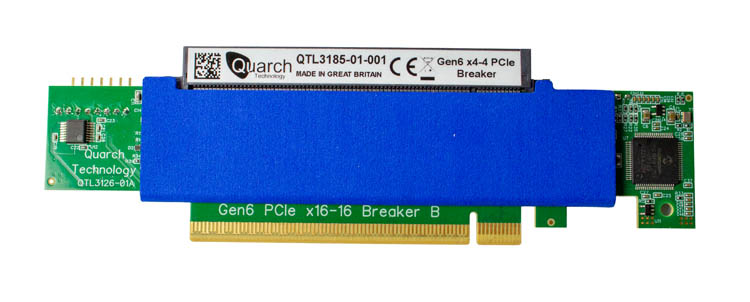

Designed for AIC/Slot devices with up to 4 data lanes. This device fits into an x16 slot, but has a smaller number of lanes instrumented to reduce costs when working with lower lane count devices.
The module has full control over power and sideband and PCIe data pins, allowing simulation of all hot-swap scenarios. Individual control of each signal, pin bounce and high-speed glitching combine to greatly increase the number of test cases you can perform. ‘Driving’ is available on some sideband pins, allowing a range of additional tests to drive signals high/low rather than just disconnecting them.
External triggering features are enabled by default for AIC devices, but cables are not supplied.
It is possible to use individual drive modules for simple bench testing. For automated storage enclosures, multiple units can be used.
Each drive module requires one port on a Torridon Controller.
NOTE: We recommend evaluating this product in your test system before purchase
Contact your local reseller or email support@quarch.com
Features
- Automate full hot-swap of a GEN6 PCIe device
- Simulate failures, intermittent faults and more
- Improve test coverage while decreasing duration
- Ideal for bench testing, debugging, and evaluation
- Scales from 1 to 100+ drive modules in a test system.
Technical
- Supports PCIe devices up to Gen6 speeds
- Supports devices up to x4 lane width
- Individual control over power and sidebands
- PCIe data lanes are all individually switched.
- Driving and monitoring of selected sidebands
- Power injection via PPM header (QTL1999 required)
- External TTL trigger in/out to external devices
- 1us timing resolution on all switches
- 100ns pin-bounce resolution on all switches
- 50ns PRBS or user-sequenced glitch pulses
- Requires Torridon Array Controller or Interface Kit.
Versions
QTL3185
This is the basic version of the module and includes external triggering features (cables sold separately).
