Gen5 EDSFF E3 Power Injection Fixture
Part Number: QTL2874 / QTL2875
Product Details

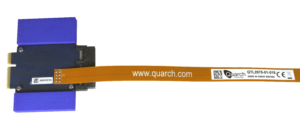

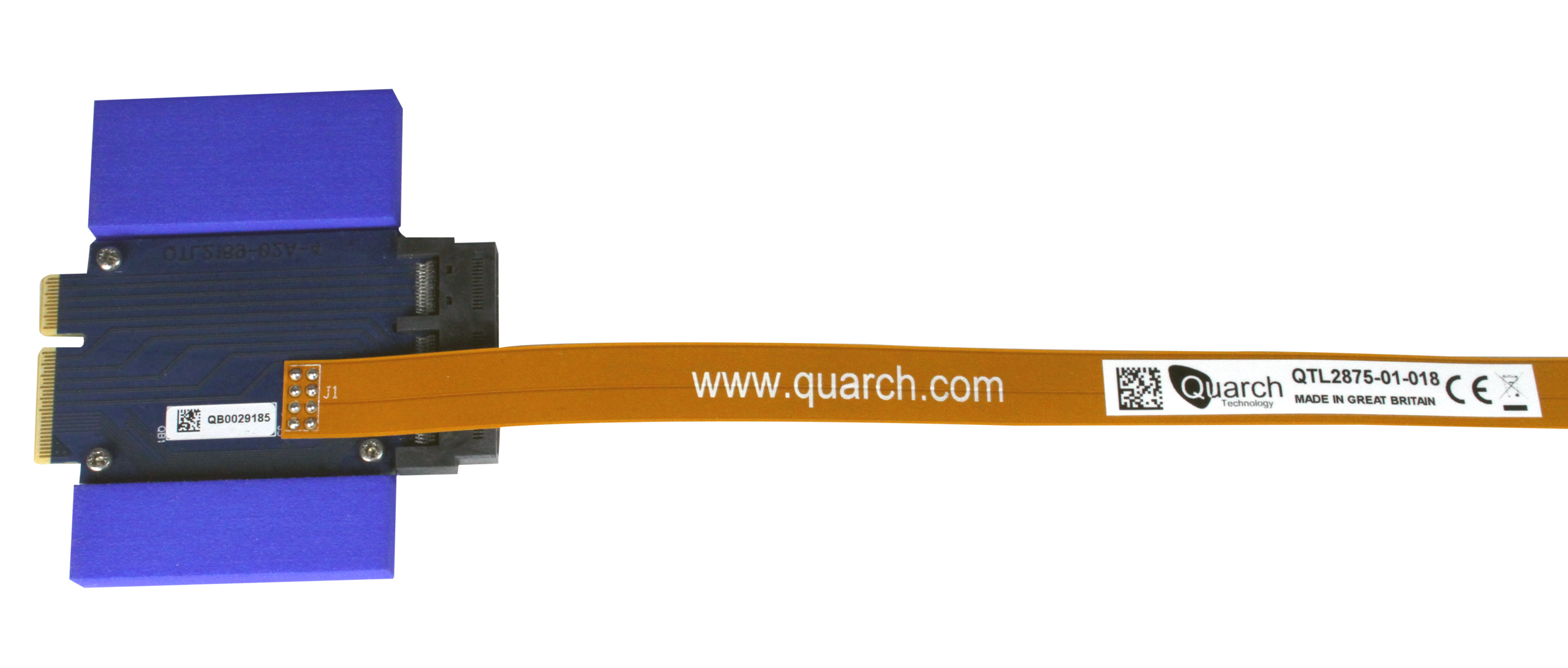

Gen5 EDSFF E3 Power Injection Fixture allows a Power Module to inject power into an E3 EDSFF SSD.

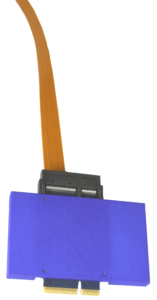

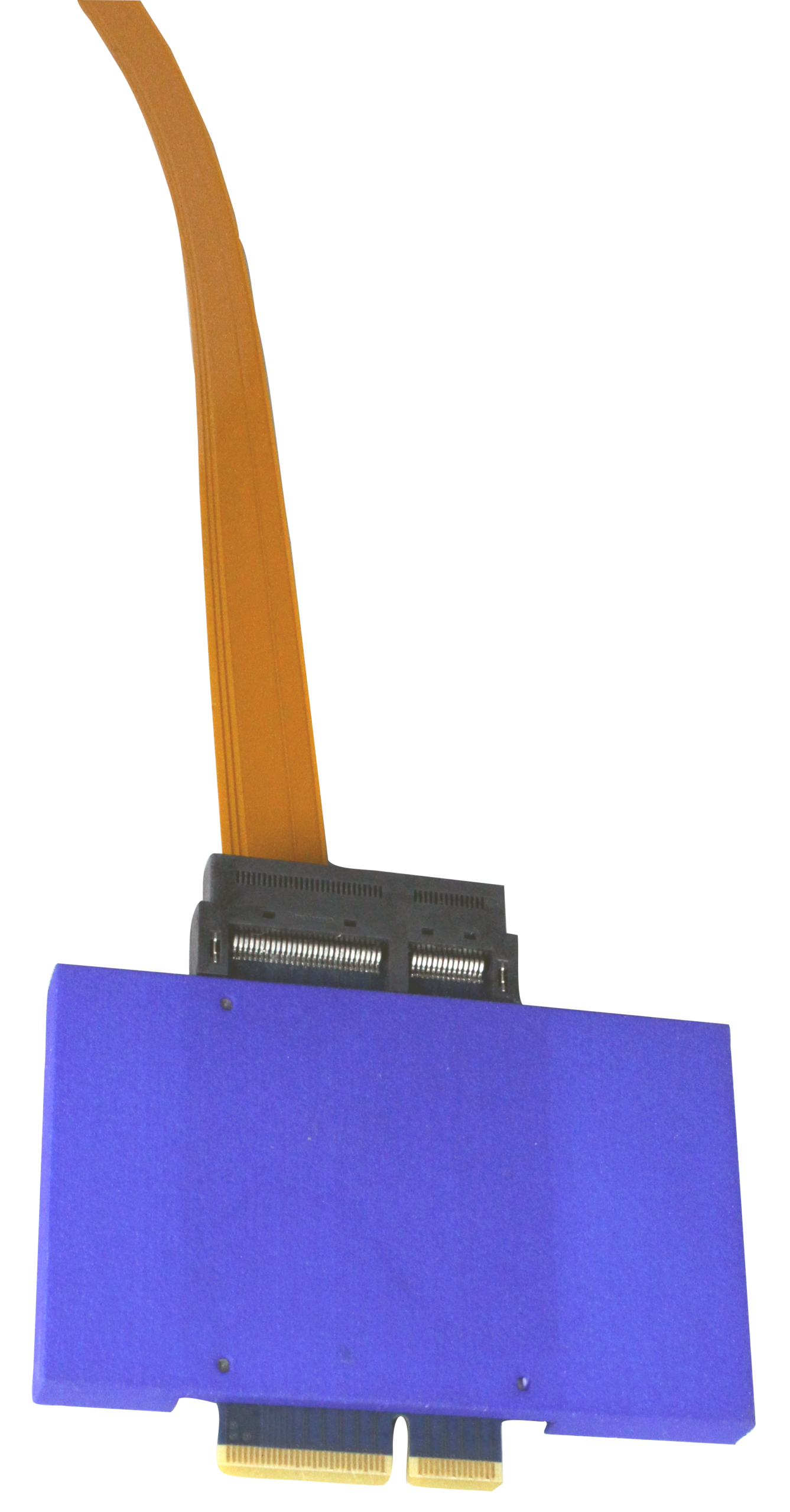

This simple interposer sits behind a drive. This allows it to be slotted into an enclosure as normal (though with a slight offset of the drive).

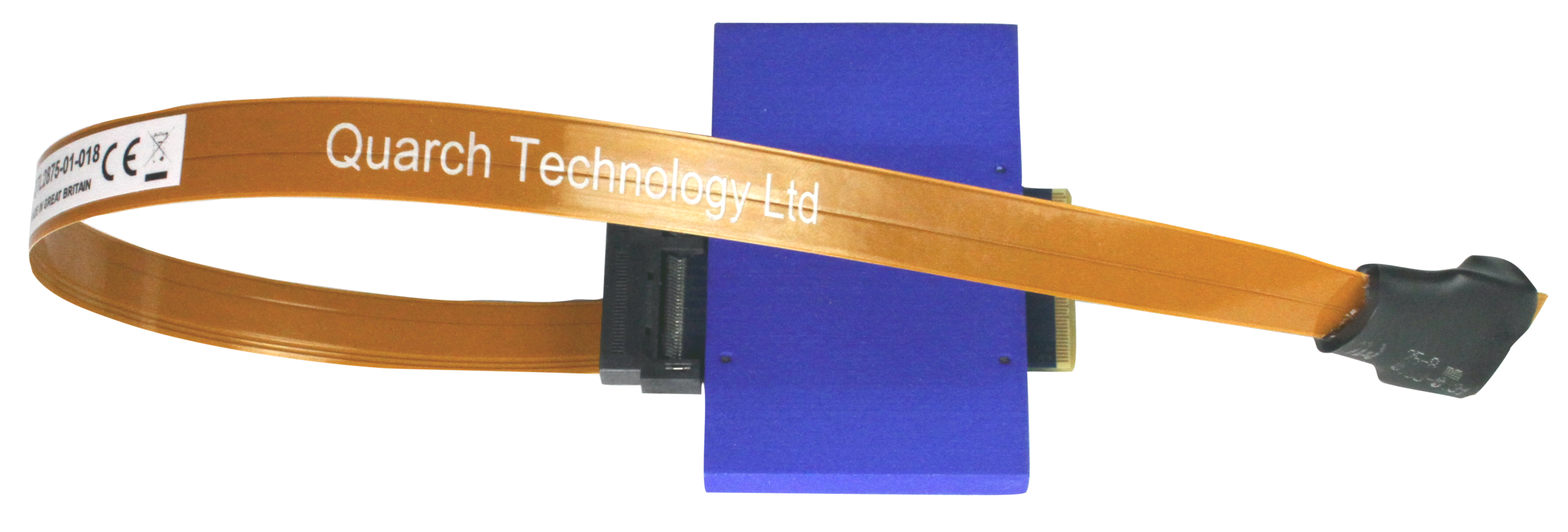

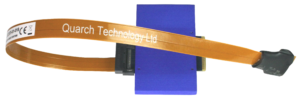

The ultra-thin flex cable routes out of the enclosure. It can be connected to one of our range of Programmable Power Modules. You can now perform power margining and measurement of the drive while using it within its normal operating environment.
This fixture supports the latest GEN5 speeds, though we recommend trialing it in your system before purchase, especially if you have additional adapters or cables in the chain.
Features
- Connects a Power Module to a drive that is within its storage enclosure
- Works with almost any standard E3 EDSFF drive.
Technical
- Supports x8 drives up to GEN5 speeds
- Supports other lane widths, depending on enclosure size
- Offsets drive by ~45mm
- 37cm flex cable to route out of the enclosure
- Compatible with XLC and HD Power Modules
- Supports auto voltage range selection on HD modules.
Versions
QTL2875
Basic version: Includes power injection sync. This ensures the power is applied to the drive at the same time that the host powers up
QTL2874
Version without power sync, power is applied manually on command
