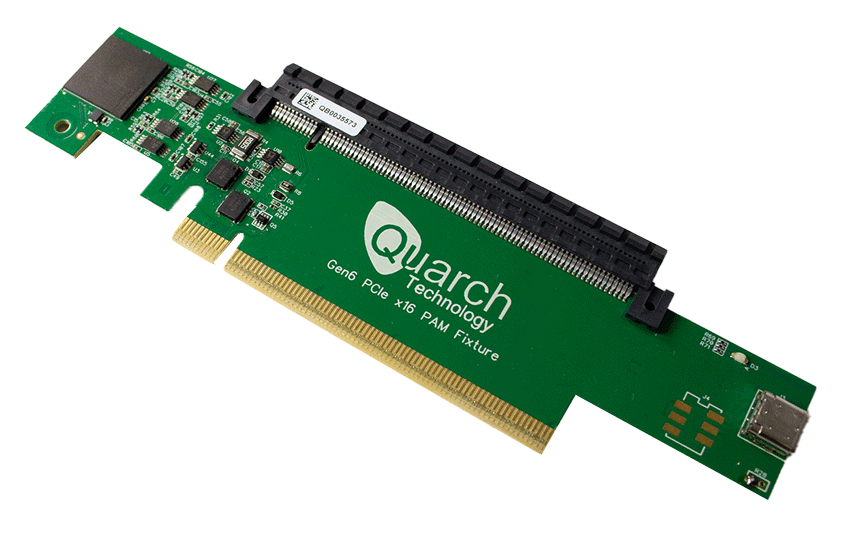

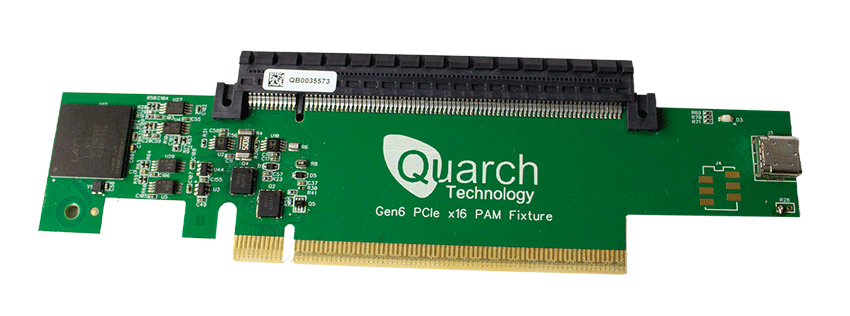

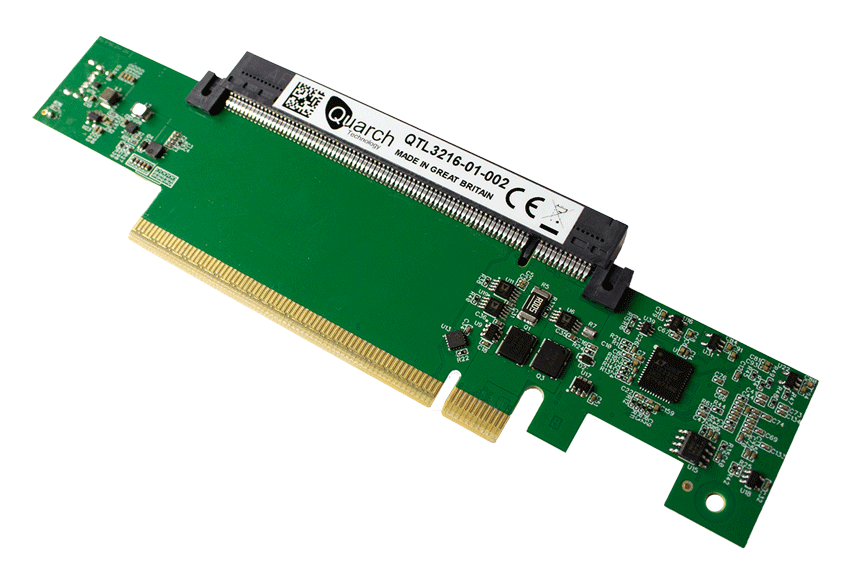

Gen6 PCIe x16 PAM Fixture
Part Number: QTL3216
Product Details
Power Analysis Module Fixtures (PAM Fixtures) are calibrated measurement devices with digital sideband capture for detailed investigation of the interaction between the host and device under test. The Gen6 PCIe x16 PAM Fixture allows easy power performance and sideband timing analysis for x16 PCIe devices, running up to Gen6 speeds.

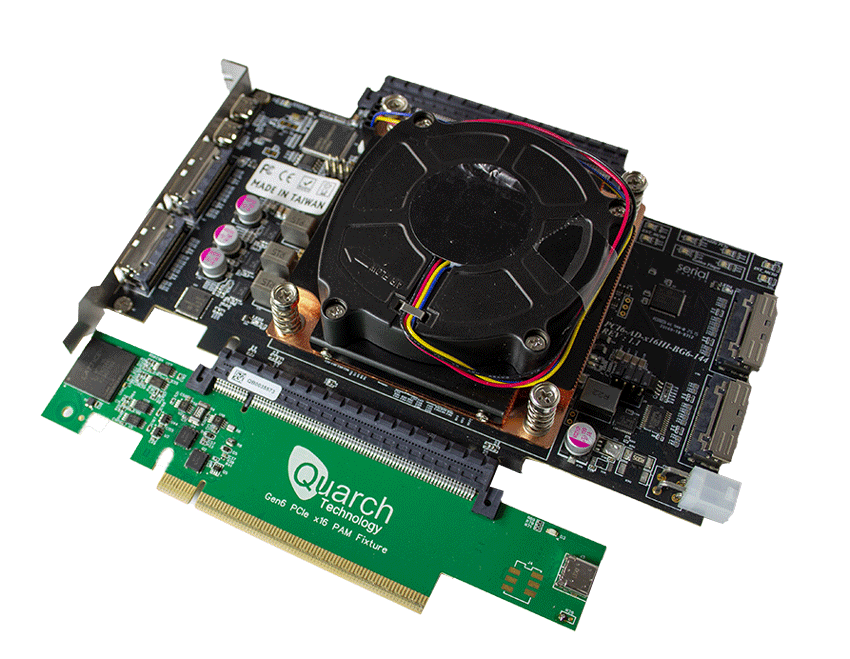

This device supports almost any device that can fit a x16 slot: PCIe, NVMe, CXL and OCP
Accurate voltage and current measurements are taken on all power rails, and selected sidebands have digital capture, giving a full picture of host/device interaction.
As with our HD range ‘Programmable Power Modules,’ the PAM fixtures provide high-resolution measurement for almost unlimited periods of recording. Quarch Power Studio and simple Python automation make this a very powerful tool!
This fixture requires a PAM controller to operate.
Contact your local reseller or email support@quarch.com
Features
- Capture long, High-resolution traces
- Diagnose issues with power up timings
- Test power performance
- Power cycle the device
Technical
- Supports PCIe AIC devices at up to Gen6 speeds
- Also supports CXL and OCP devices
- Supports up to 16 lane devices
- Measure Voltage/Current/Power on 12v, 3v3 and 3v3_aux rails
- Monitor PERST, WAKE, CLKREQ, SMDAT and SMCLK sideband lines
- 250KHz base sampling rate with hardware averaging up to 32k samples
- 1MHz sampling for digital signals
