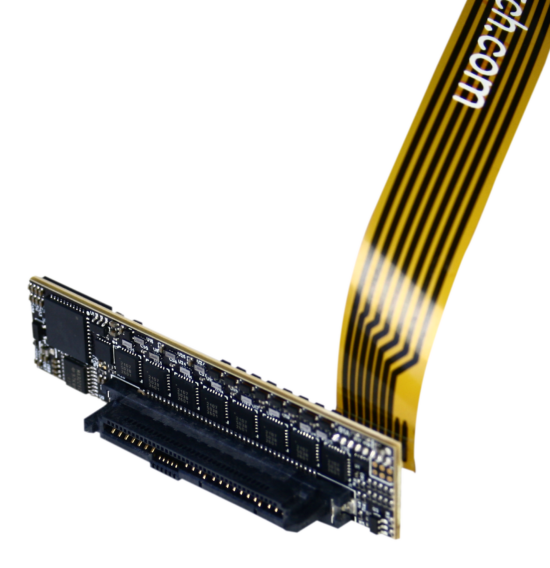

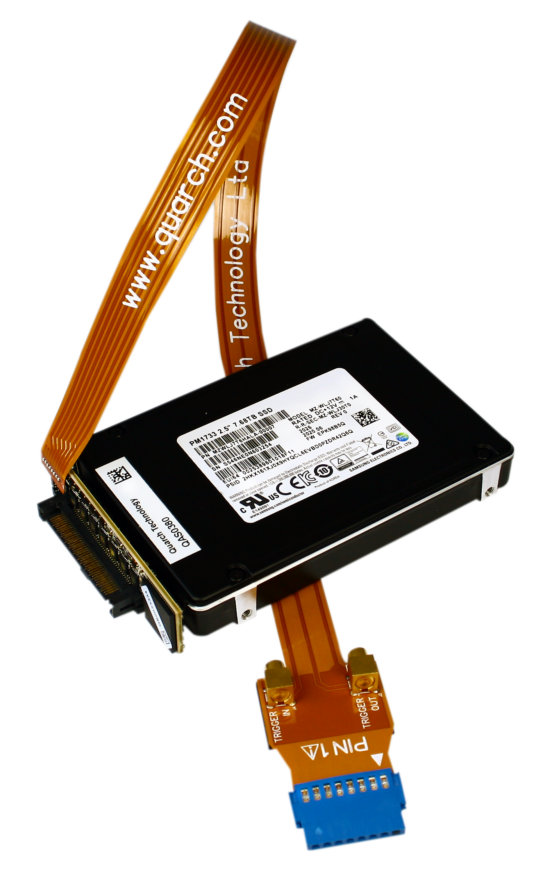

GEN5 PCIE U.2 MODULE
Part Number: QTL2645 / QTL2651
Product Details
Perform full hot-swap and fault injection with the latest GEN5 PCIe SFF/U.2 drives.
The module has full control over power, data (dual port) and present pins, allowing simulation of any possible hot-swap scenario. Individual control of each signal, pin bounce and high speed glitching combine to greatly increase the number of test cases you can perform. ‘Driving’ is available on some sideband pins, allowing a range of additional tests to drive signals high/low rather than just disconnecting them. The ‘+Triggering’ version has an additional MCX trigger IN/OUT to sync with external test equipment.
The drive modules can be used individually, for simple bench testing or to automate an entire storage enclosure with multiple units.
Each drive module requires one port on a Torridon Controller.
NOTE: We recommend evaluating this product in your test system before purchase
Features
- Automate full hot-swap of a GEN5 PCIe SFF drive
- Simulate failures, intermittent faults and more
- Improve test coverage while decreasing duration
- Ideal for bench testing, debugging, and evaluation
- Scales from 1 to 100+ drive modules in a test system.
Technical
- Supports PCIe SFF drives up to 32GT/s
- Individual control over power, present, sideband and PCIe data signals
- Driving and monitoring of selected sidebands
- 1us timing resolution on all switches
- 100ns pin-bounce resolution on all switches
- 50ns PRBS or user-sequenced glitch pulses on all lines
- Requires Torridon Array Controller or Interface Kit.
Versions
QTL2645
This is the basic module.
QTL2651

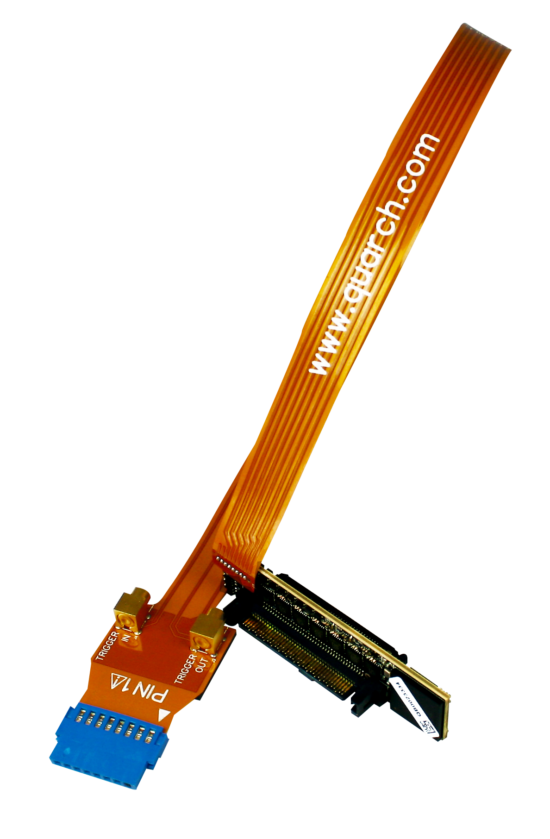

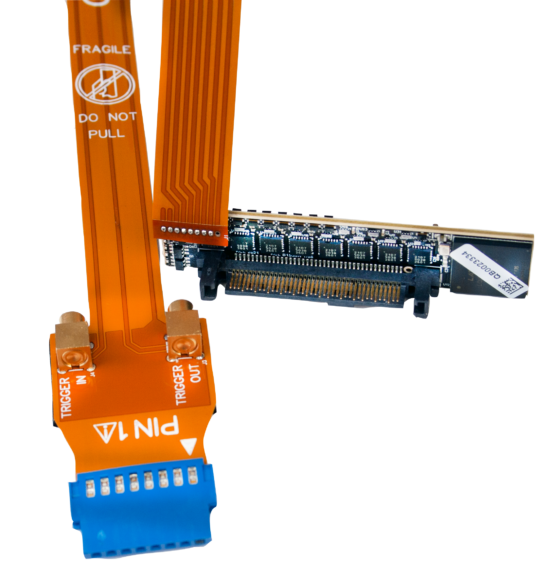

This version includes external triggering IN/OUT via SMA cables to allow connection to an external analyser or similar.
