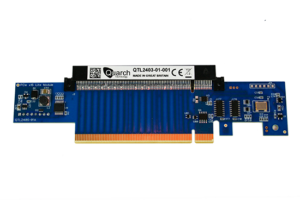

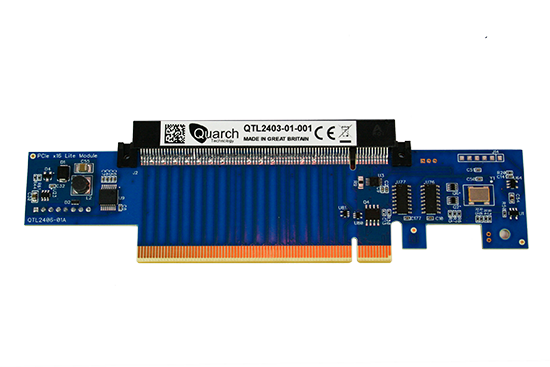

Gen4 PCIe x16 LITE Breaker Module

Gen4 PCIe x16 LITE Breaker Module

Part Number: QTL2403, QTL2404

Product Details

A leaner and lower-cost alternative to our full-spec Gen4 modules – but with an added extra: basic power measurement. The Gen4 PCIe x16 LITE Breaker module provides simple hot-plug automation, with control over power, sideband, and present pins.

This module fits into a PCIe x16 slot and allows hot-swap and power monitoring of any x1/x2/x4/x8/x16 GEN4 PCIe device.

With the direct routing of the PCIe data signals, there will be minimal effect on Signal Integrity, while power control allows you to hot-plug your device automatically.

Basic power monitoring allows you to request the consumption of each of the rails in real-time. This is not as accurate as using out Programmable Power Module, but does provide a useful indication in many tests.



Quarch Resellers

Quarch has a network of skilled regional resellers who can provide quotes and arrange evaluations.  Outside of these areas, Quarch UK usually handles customers directly.

Features

  • Individual control over power pins
  • Grouped control over sideband and presence pins
  • Basic power measurement
  • Improved and test coverage and speed
  • Ideal for bench testing, debugging, and evaluation

Technical

  • Supports PCIe 1.0a, 1.1, 2.0, 3.0 and 4.0
  • Supports x1 to x16 device cards
  • Vertically displaces device by 40.4mm
  • Requires Array Controller or our Torridon Interface Kit

Versions

QTL2403

The basic module

QTL2404

Module with added inrush current limit
