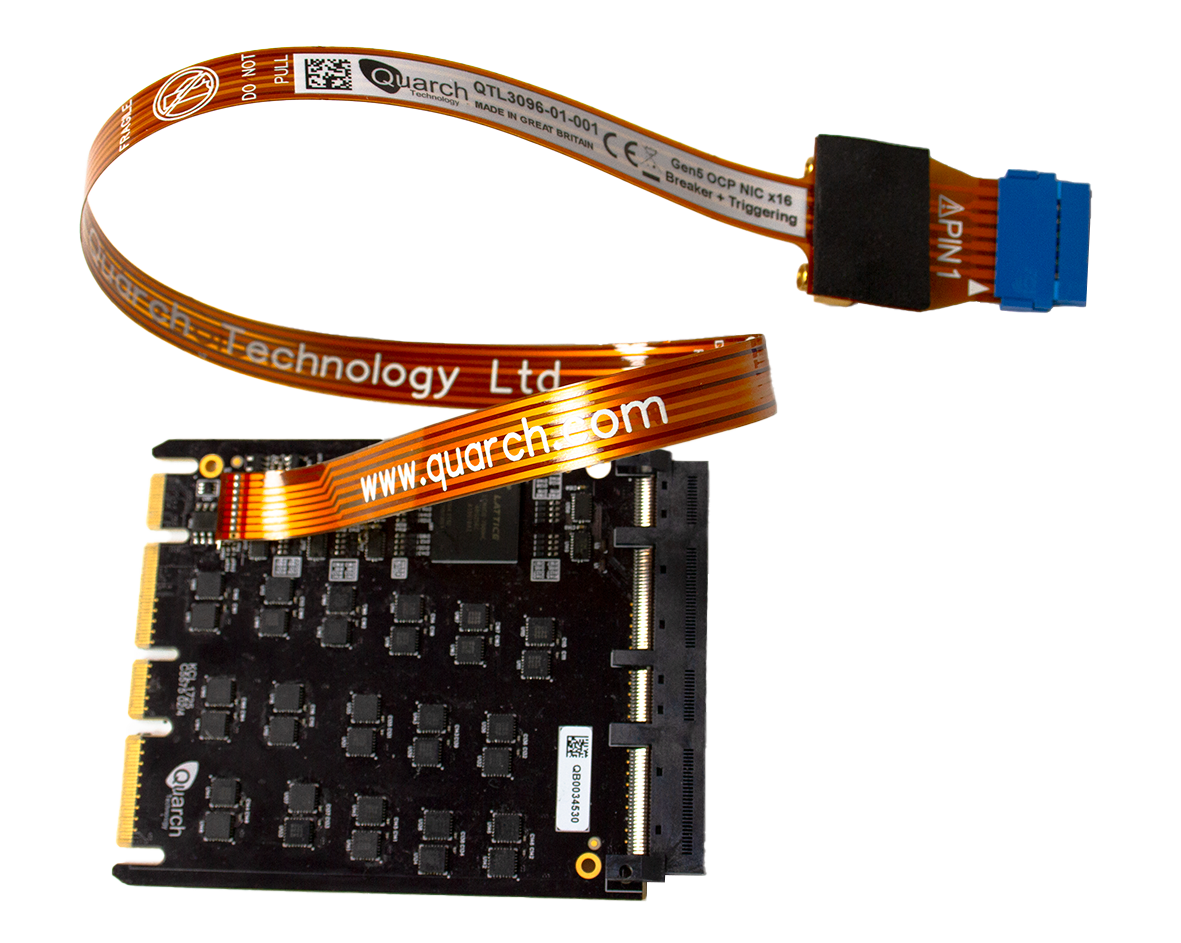

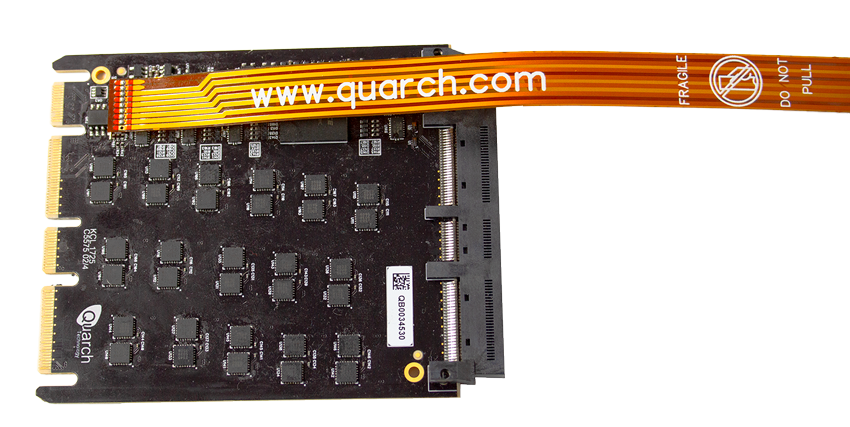

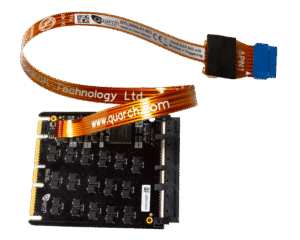

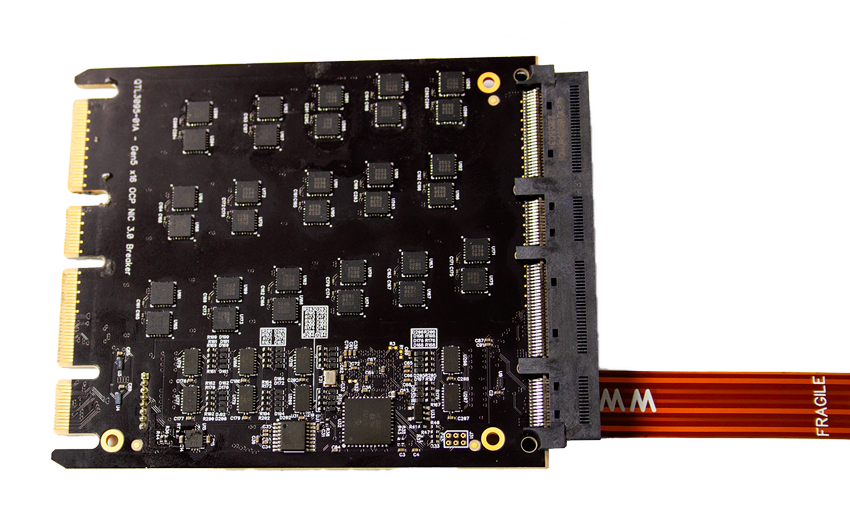

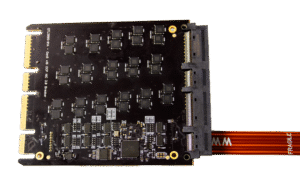

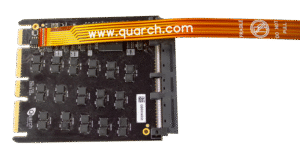

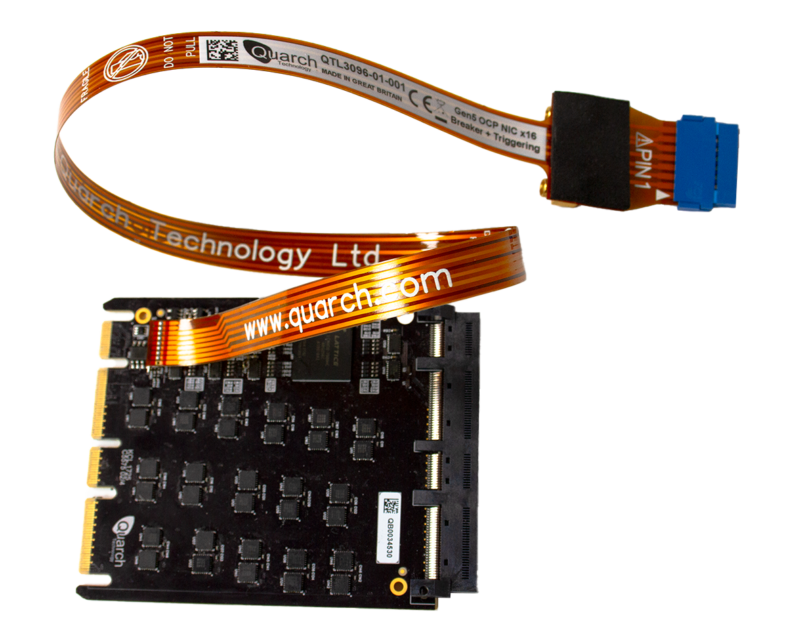

Gen5 OCP NIC 3.0 Breaker
Part Number: QTL3095 / QTL3096
Product Details
Gen5 OCP NIC breakers allow you to perform automated hot-swap and fault injection testing for OCP NIC devices.
The module has full control over power, data (x16 PCIe), and sideband pins, allowing simulation of any possible hot-swap scenario. Individual control of each signal, pin bounce, and high-speed glitching combine to greatly increase the number of test cases you can perform. ‘Driving’ is available on some sideband pins, allowing a range of additional tests to drive signals high/low rather than just disconnecting them. The ‘+Triggering’ version has an additional MCX trigger IN/OUT to sync with external test equipment.
Each drive module requires one port on a Torridon Controller.
NOTE: We recommend evaluating this product in your test system before purchase
Features
- Automate full hot-swap of any OCP NIC 3.0 device
- Simulate failures, intermittent faults and more
- Reduce lane width, inject data errors
- Supports PCIe and CXL links
Technical
- Supports OCP NIC devices up to Gen5 speeds
- Individual control over power, present, sideband and PCIe data signals
- Supports devices up to x16 lane width
- Driving and monitoring of selected sidebands
- 1us timing resolution on all switches
- 100ns pin-bounce resolution on all switches
- 50ns PRBS or user-sequenced glitch pulses on all lines
- Requires Torridon Array Controller or Interface Kit.
Versions
QTL3095
Basic version
QTL3096
Triggering version.
External triggering allows syncing with other test equipment and outside events or easy monitoring of sidebands into a scope or analyser.
