Build Your Own USB-C Power Injection Fixture
Your trusted partner for simple, scalable testing solutions. Get hands-on with power testing.
USB-C Power Injection Fixture
A USB-C interposer placed between a host and a device, allowing for controlled power injection and measurement.
Modes of Operation:
- Simple Mode: Inject a static 5V power supply, independent from the host.
- PPM (Programmable Power Module) Mode: Offers advanced, precise control of power delivery for dynamic testing scenarios.
Advanced Power Testing
- Automated Power Cycling: Repeatedly turn power on/off to stress test devices.
- Precise Power Margining: Sweep voltage from 0V to 6V to test device behavior outside ideal conditions.
- Real-world Glitch Simulation: Introduce power “glitches” and noise patterns to build robust designs.
Measurement & Analysis with Quarch Power Studio
Take your analysis to the next level with our powerful software suite.
- View and capture voltage/current data over time.
- High-speed 250,000 samples/second.
- Annotate traces, take notes, and zoom into fine details.
- Export data for deeper analysis.
Fully scriptable and cross-platform for ultimate flexibility.
- Full Python automation support.
- Built on the Quarch Instruments Server platform.
- Runs on Windows, Linux, and macOS.
Easy, Beginner-Friendly Assembly
We designed the assembly process to be as simple as possible, requiring only basic soldering knowledge.
Required Equipment:

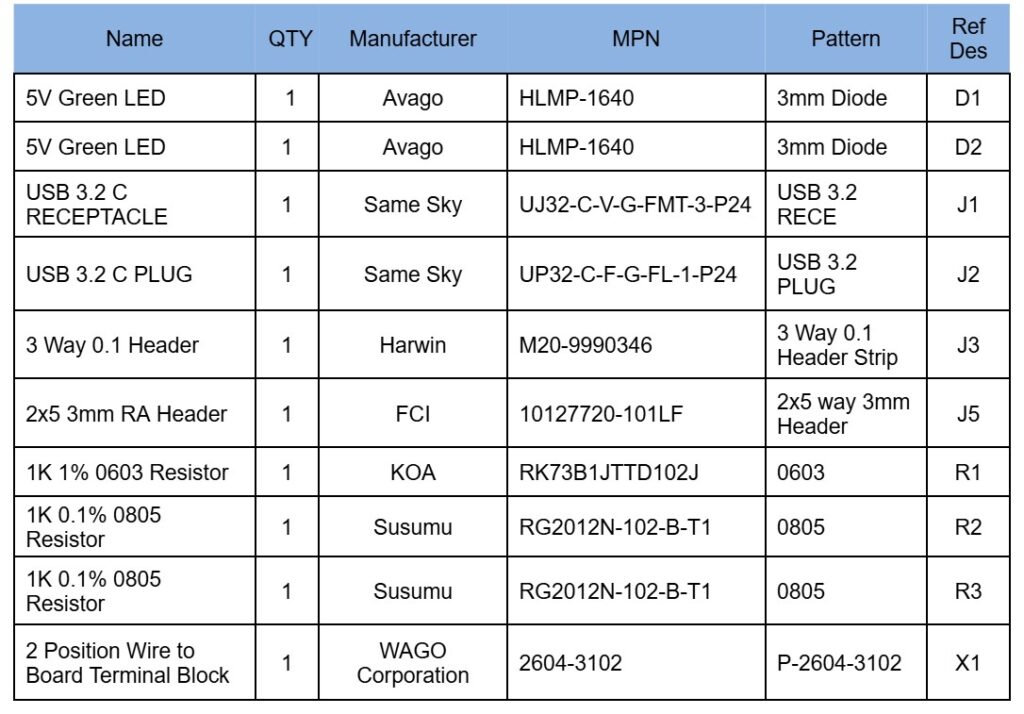

Soldering Equipment (Iron, solder, etc.) / Parts included in the Bill of Materials. (See below)
Process:
Simply match the components from the Bill of Materials to their corresponding locations on the PCB (marked with RefDes like ‘R1’, ‘J1’, etc.) and solder them in place.
Have Questions or Need Support?
If you have any questions about the assembly or need further assistance, please don’t hesitate to get in touch with our team.
