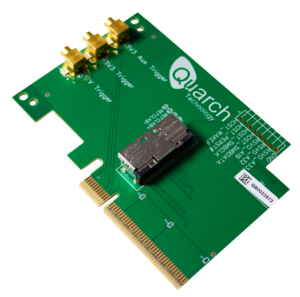

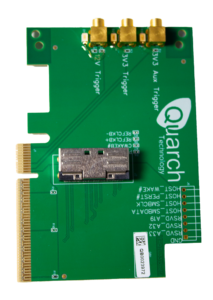

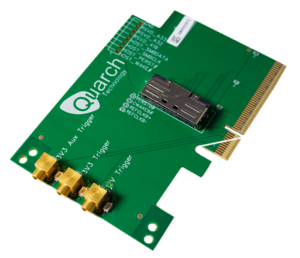

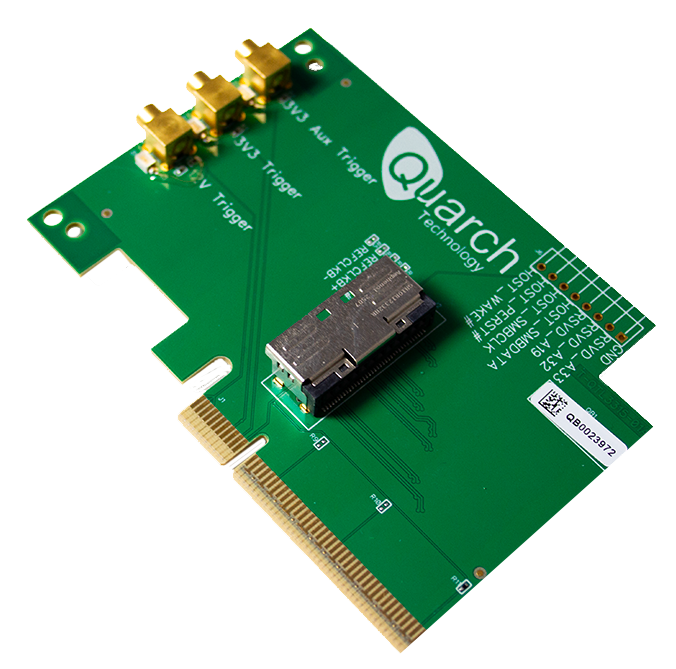

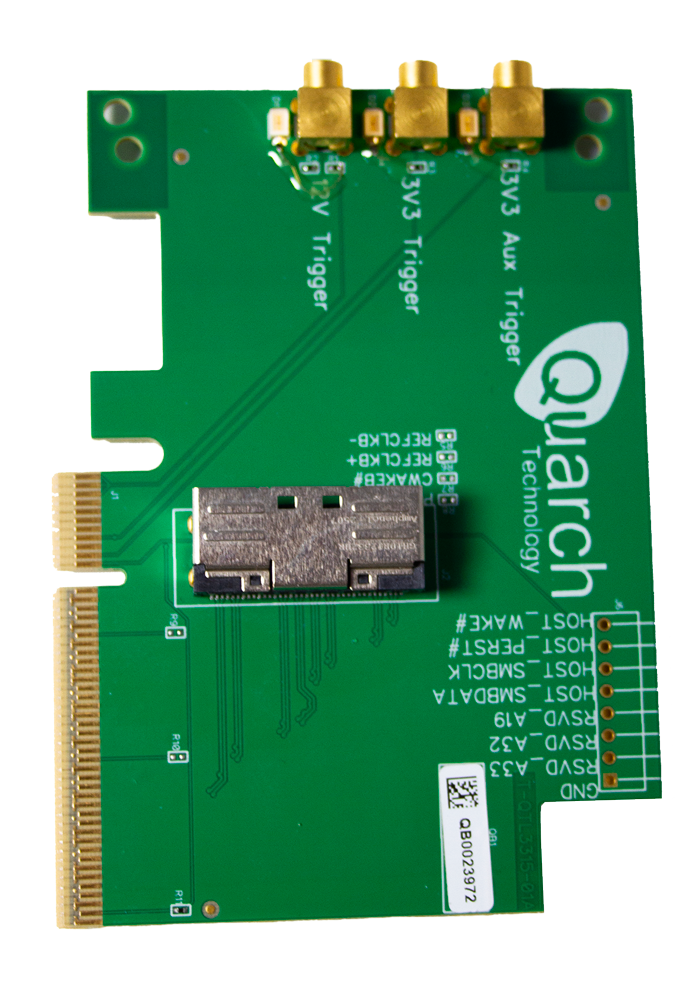

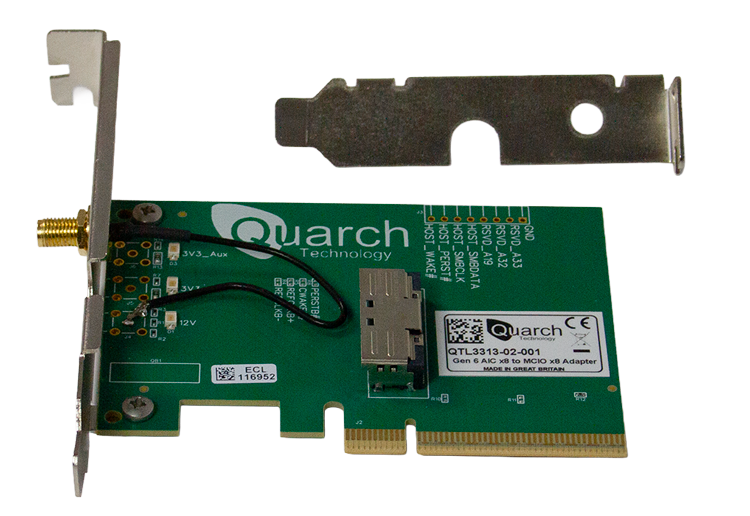

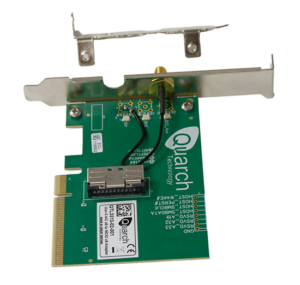

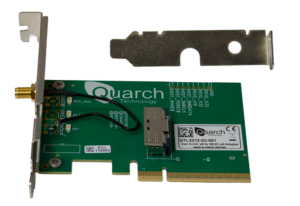

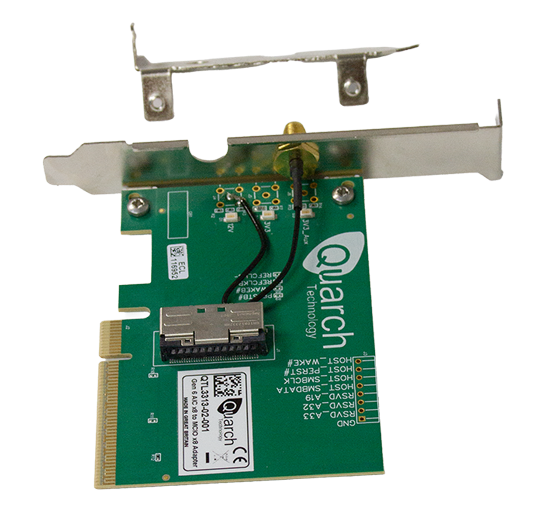

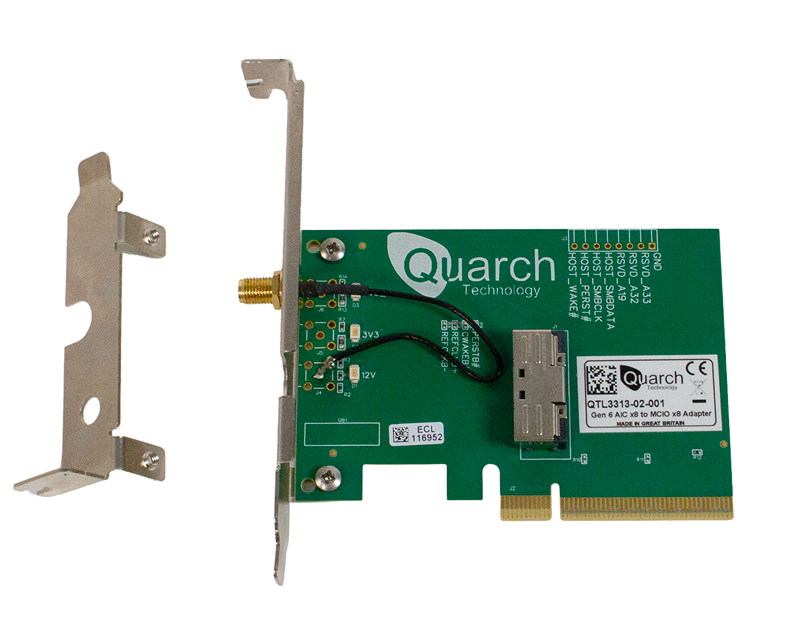

Gen6 AIC to MCIO adapter
Part Number: QTL3313
Product Details
Connect an MCIO device to any AIC host: the Gen6 AIC to MCIO adapter.
This Gen6 adapter fits in an x8 or x16 slot and has triggering connectors connected to the host power rails, and sideband test points allow for easy debugging.
This is ideal for use with the Aon Drive Enclosure for benchtop testing in a non-MCIO host. It is also suitable for use with any other MCIO-cabled device.
Features
- Adapt AIC x8 slots to MCIO x8 connectors
- Allows triggering off host power, and LEDs showing the presence of individual power rails
- Easy access to key sidebands
Technical
- Supports speeds up to PCIe 6.0 64GT/s
- Suports PCIe, NVMe and CXL devices
- Provides access to Host side Wake#, Perst#, SMClock, SMData, and reserved pins via a no-fit header
- MCX Triggering connectors allow triggering from host power
