MCIO x4/x8 to SMPM Adapters
Part Number: QTL3244/QTL3248
Product Details

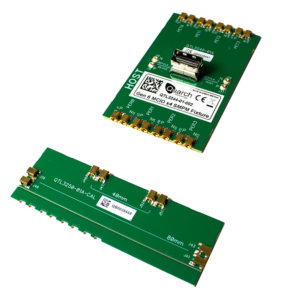

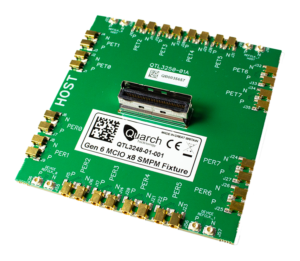

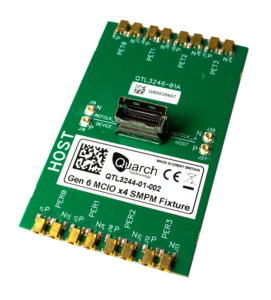

The MCIO x4/x8 to SMPM Adapter kits include a host board MCIO to SMPM fixture to assist in signal integrity testing of Gen6 PCIe links. The fixture is wired for MCIO x4/x8, with each lane being brought out to a set of SMPM connectors.

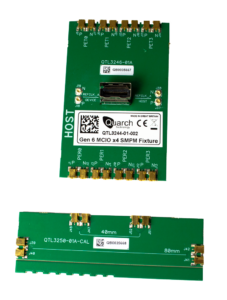

A calibration coupon is also included, made of the same PCB material and with the same trace length.
This allows test equipment such as a VNA to be connected to the PCIe data lanes of either an MCIO host or device for test purposes.
Access to the reference clock (REFCLK) pins are provided with a pair of U.FL connectors on each board
Contact your local reseller or email support@quarch.com
Features
- Allow a VNA or similar to be routed into an MCIO connector
- x4/x8 lane width versions
- Allows connection to RefClk pins
- The adapter does not support power or sideband connections
- Includes calibration coupon
Technical
- MCIO x4 or x8 vertical connector
- SMPM connectors for each lane
- UF.L connectors for REFCLK access
Versions
QTL3257
MCIO x4 SMPM Fixtures
QTL3261
MCIO x8 SMPM Fixtures
