Gen6 U.2 SMPM Adapter
Part Number: QTL3333
Product Details

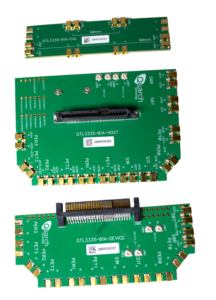

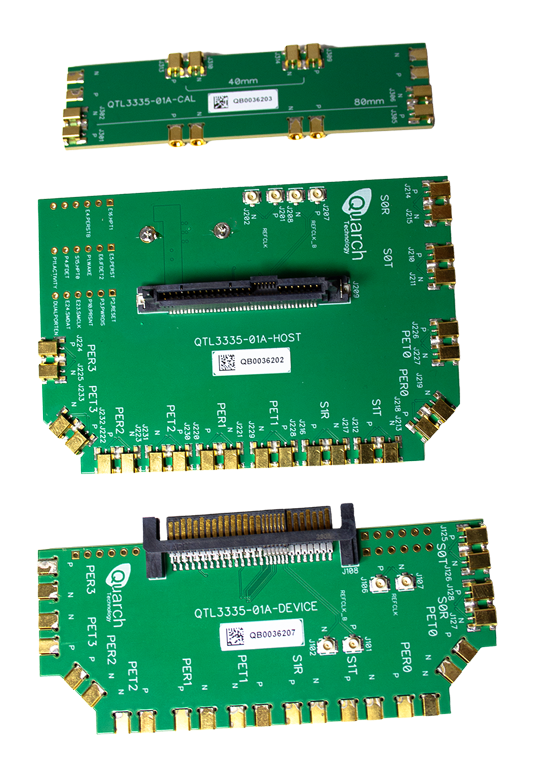

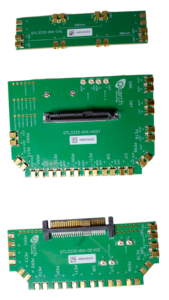

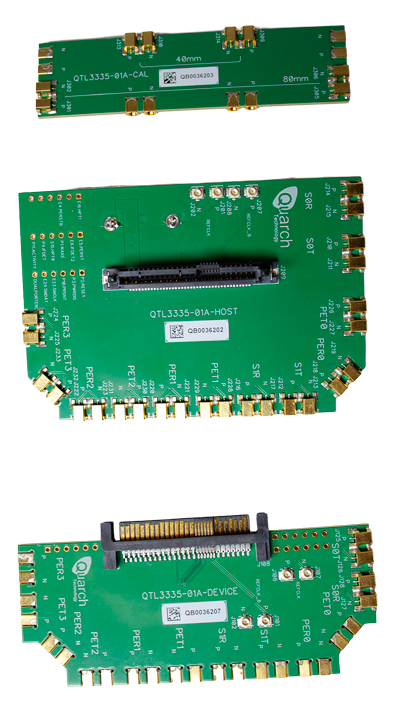

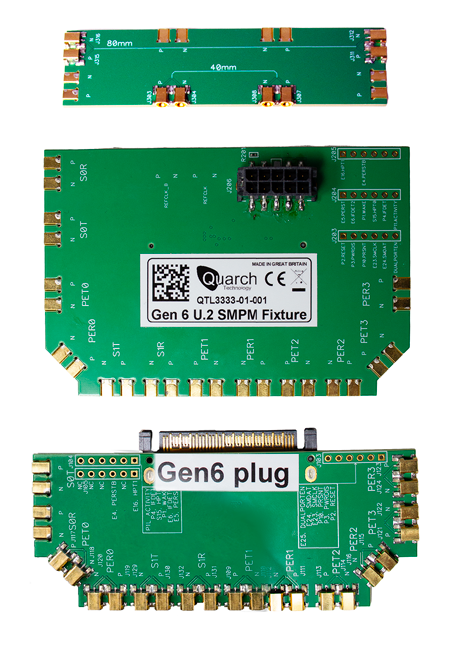

This Gen6 U.2 SMPM Adapter kit includes a pair of matching U.2 to SMPM fixtures to assist in signal integrity testing of Gen6 PCIe links. The fixtures are wired for PCIe x4, with each lane being brought out to a set of SMPM connectors. SAS lanes are also brought out.

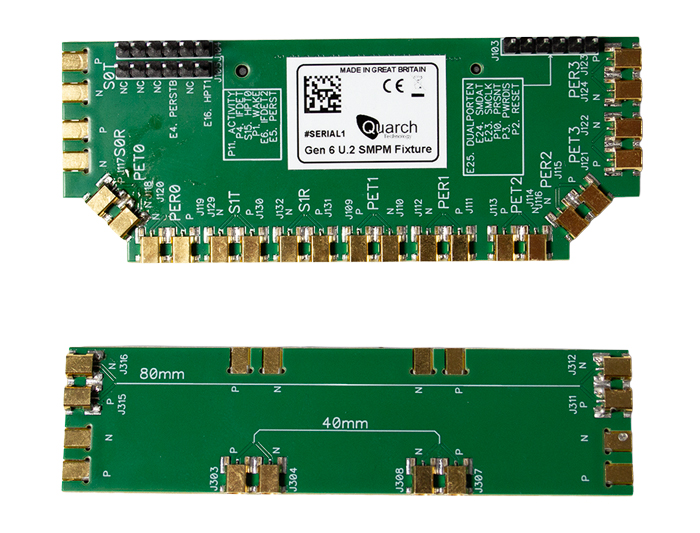

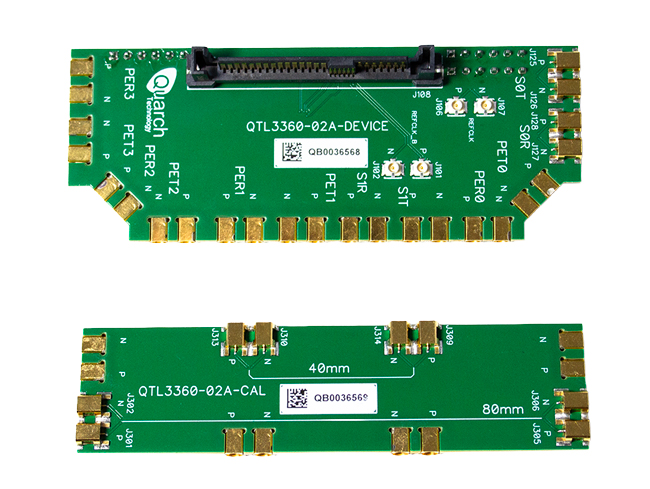

A calibration coupon is also included, made of the same PCB material and with the same trace length.
This allows test equipment such as a VNA to be connected to the PCIe data lanes of either a U.2 host or device for test purposes.
Access to the reference clock (REFCLK) pins is provided with a pair of U.FL connectors on each board.
Features
- Allow a VNA or similar to be routed into a U.2 connector
- x4 lane width
- Allows connection to RefClk pins
- Full breakout for SAS data lanes
- Adapter does not support power or sideband connections
- Includes calibration coupon
Technical
- Supports PCIe 6.0, 64GT/s
- Allows connections to transmit and receive PCIe data lanes 0 to 3 on host or device side via SMPM connectors.
- Provides access to SAS primary and secondary ports for dual-path testing
- Allows access to RefClk pins on host or device side through U.FL connectors.
