Gen6 MCIO SMPM Edge Finger Fixtures
Part Number: QTL3255, QTL3259
Product Details

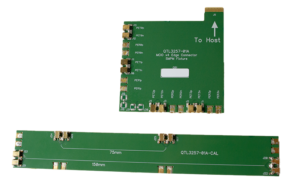

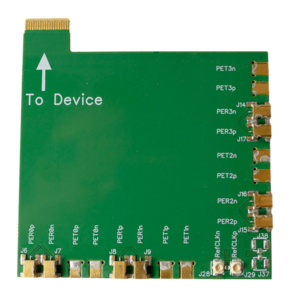

These Gen6 MCIO SMPM Fixtures are a kit, including a pair of matching MCIO Edge Finger to SMPM fixtures to assist in signal integrity testing of Gen6 PCIe links.
The fixtures are wired with each lane being brought out to a set of SMPM connectors. x4 and x8 width versions are available.

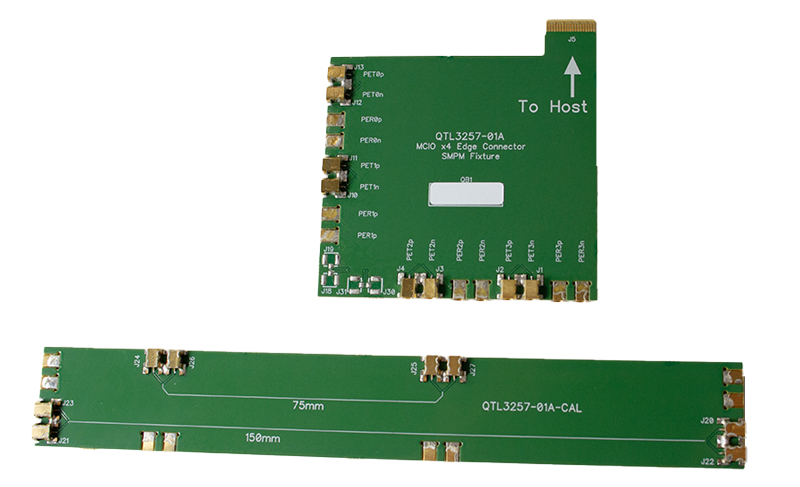

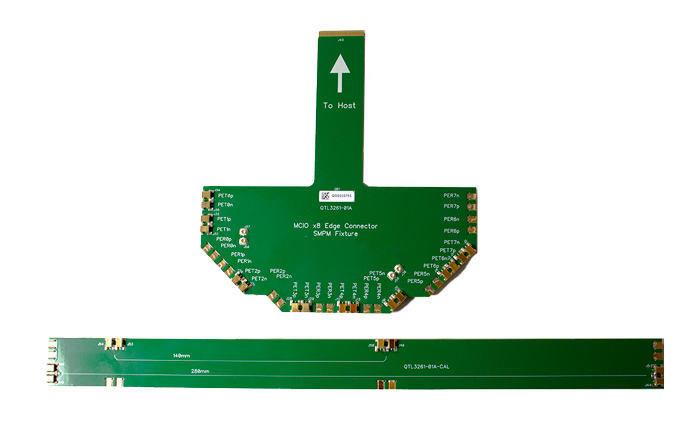

A calibration coupon is also included, made of the same PCB material and with the same trace length.
This allows test equipment such as a VNA to be connected to the PCIe data lanes of either an MCIO host or device for test purposes.
Access to the reference clock (REFCLK) pins are provided with a pair of U.FL connectors on each board
Contact your local reseller or email support@quarch.com
Features
- Allow a VNA or similar to be routed into a
- MCIO connector x4 lane width
- Allows connection to RefClk pins
- The adapter does not support power or sideband connections
- Includes calibration coupon
Technical
- Supports PCIe 6.0, 64GT/s
- Allows connections to transmit and receive PCIe data lanes 0 to 3 on the host or device side via SMPM connectors.
- Allows access to RefClk pins on the host or device side through U.FL connectors.
Version
QTL3255

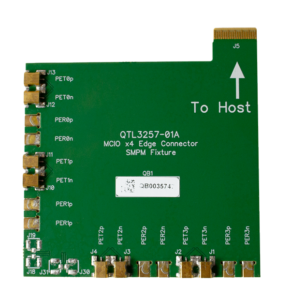

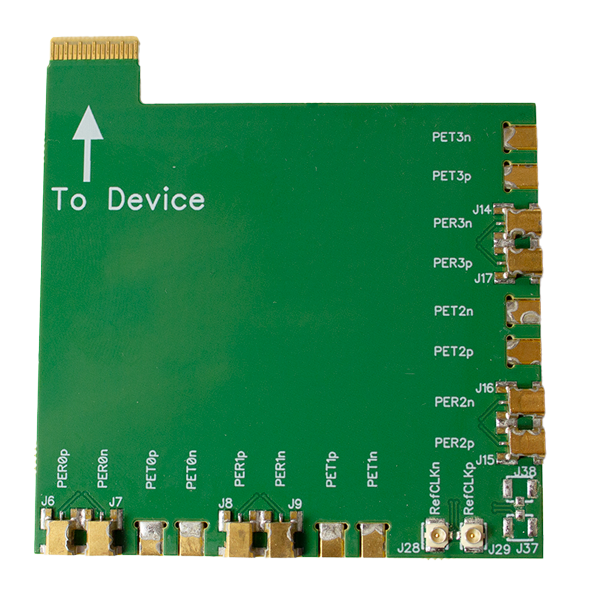

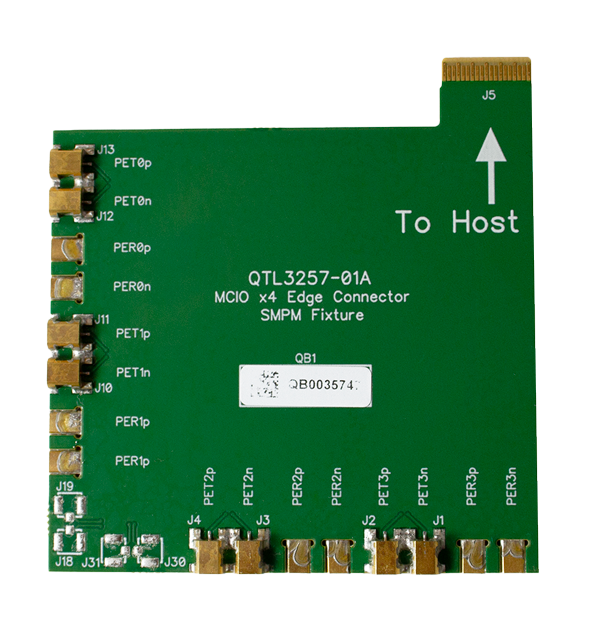

MCIO (edge finger) x4 Fixture kit
QTL3259

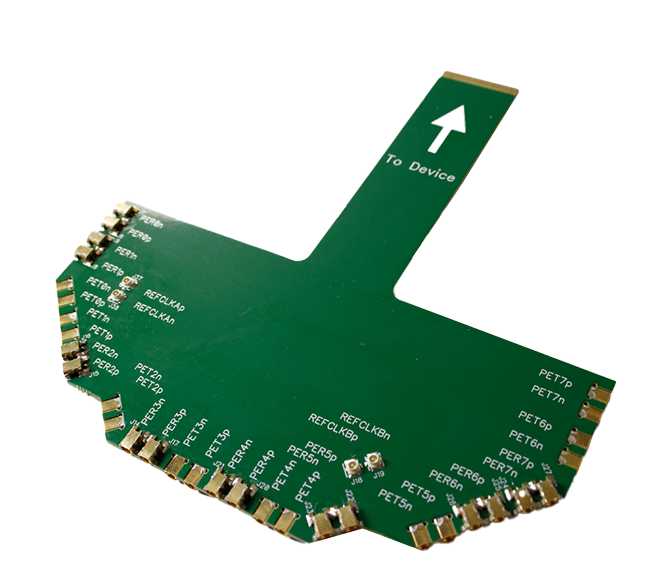

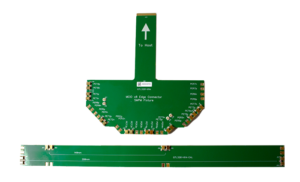

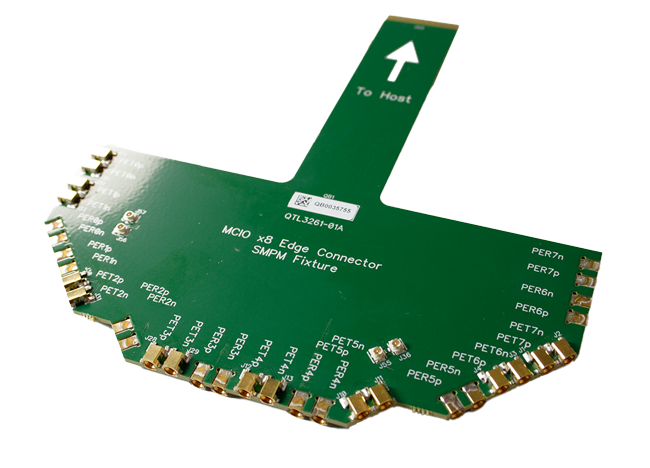

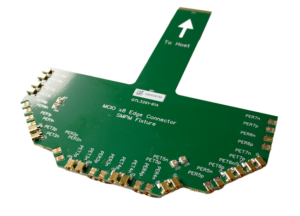

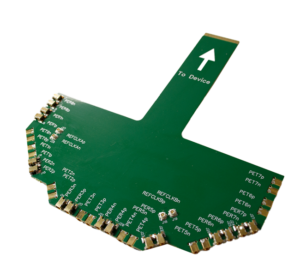

MCIO (edge finger) x8 Fixture kit
