Gen5 AIC to M.2 PPM Fixture
Part Number: QTL3107
Product Details
Allows a Power Module to inject power into a M.2 device

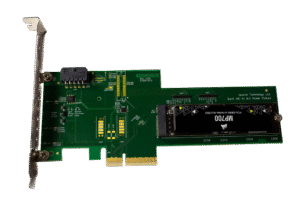

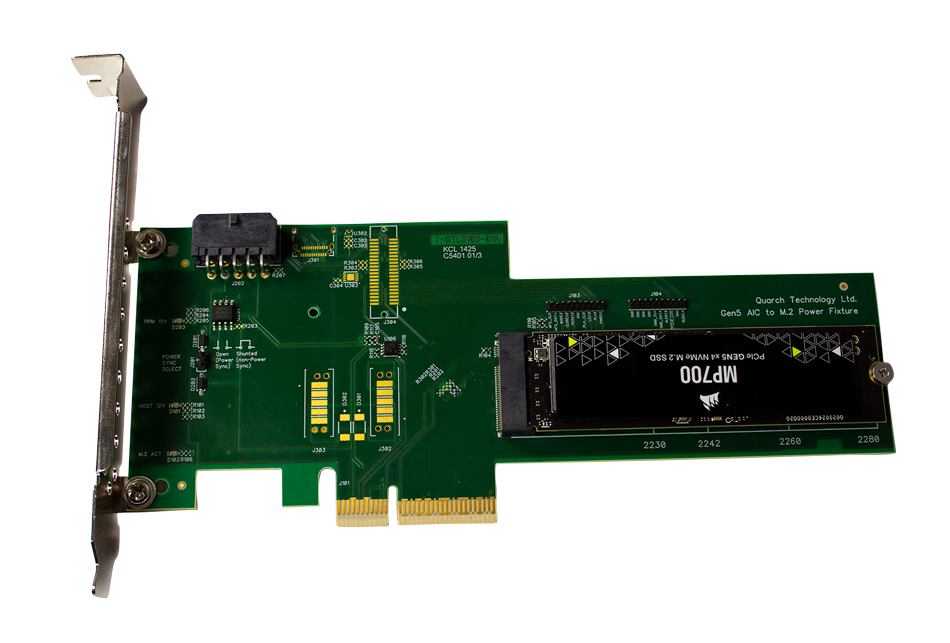

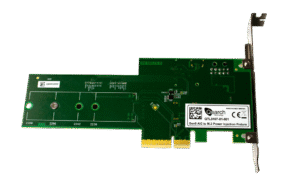

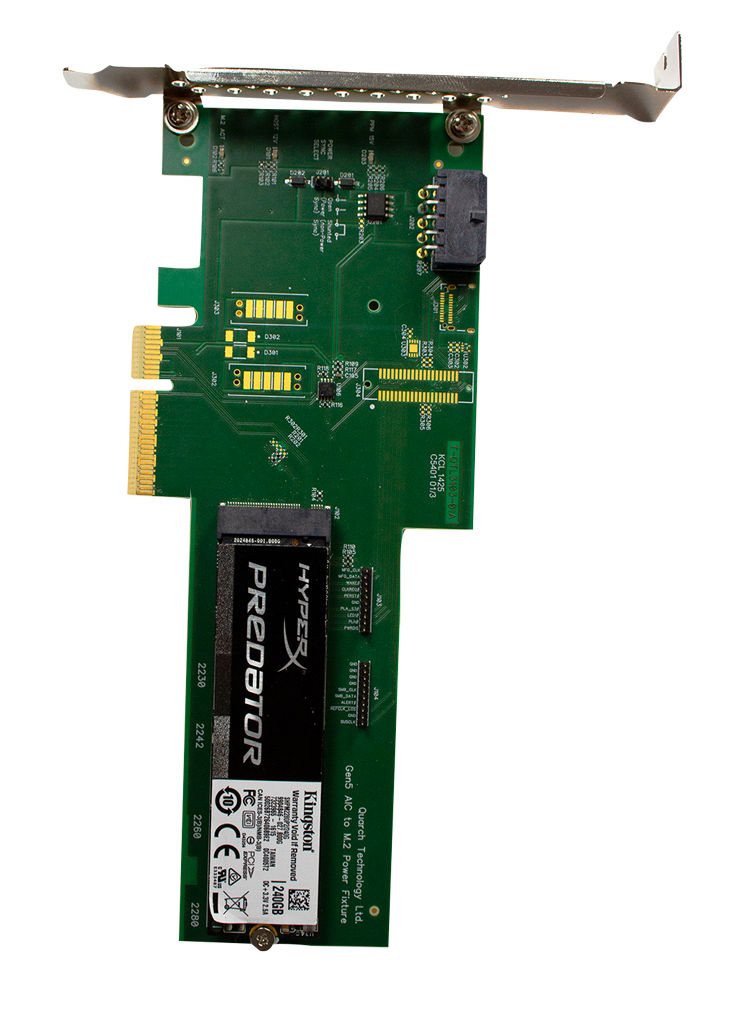

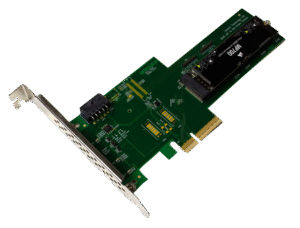

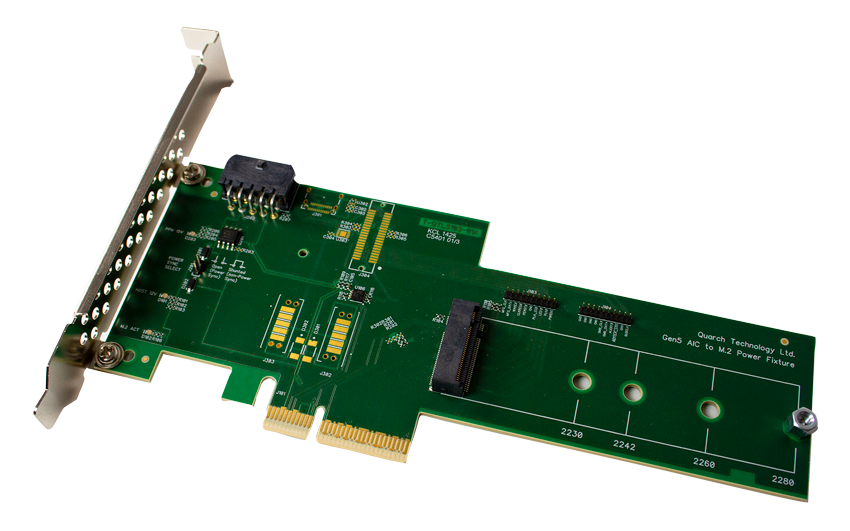

This simple interposer fits in a x4 PCIe slot and allows power to be injected into the attached M.2 card at up to Gen5 speeds

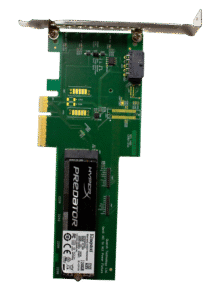

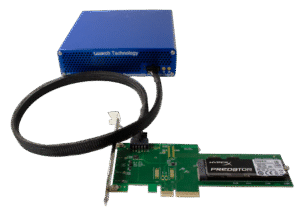

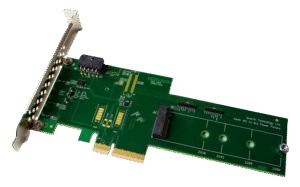

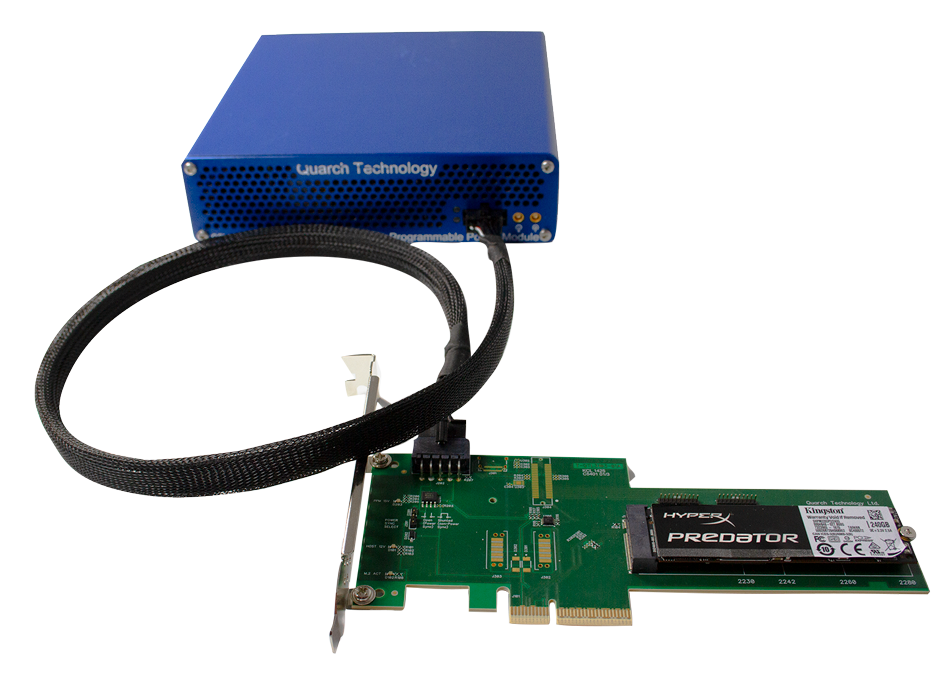

Connected to one of our range of Programmable Power Modules, you can now perform power margining and measurement of the drive while using it within its normal operating environment.
The interposer synchronizes with the host power to ensure your M.2 device is powered up at exactly the correct time.
Features
- Connects a Power Module to a M.2 device
- Works with almost any standard M.2 device within the Power Module current limits
- Power to the device is applied at the exact time the host powers up
- Probe points for sideband signals
Technical
- Supports PCIe M.2 devices up to Gen5 speeds
- 60cm cable supplied to route to the Power Module

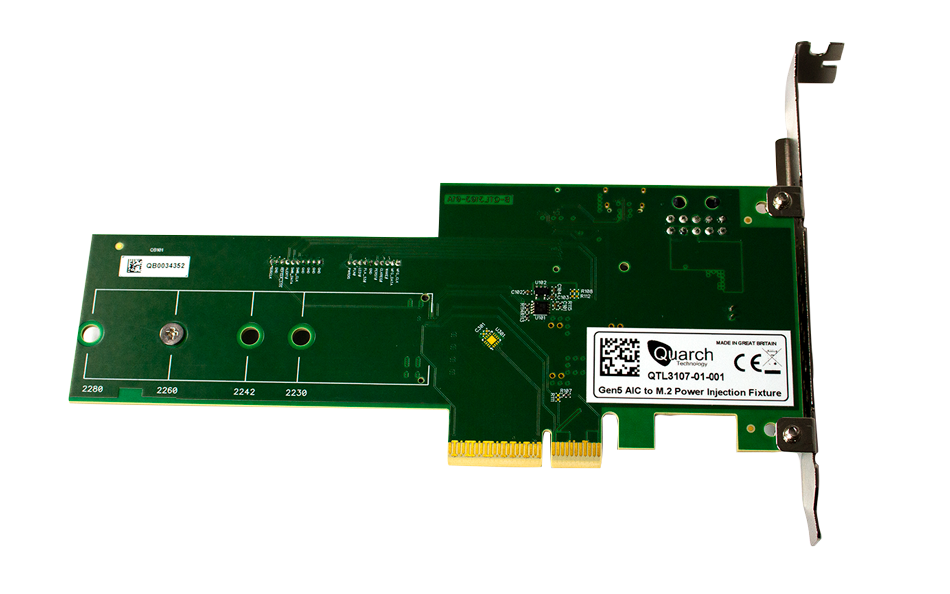

- Supports all standard lengths of M.2 cards up to 110mm
- Fits PCIe x4 and larger slots
- Host power detect ensures the DUT powers up correctly
- Host power sync ensures the device is powered at the same time as the host (can be disabled by jumper)
- Header pins allow direct probing of key sideband signals
